sciFLEXARRAYER SX

Automated liquid dispensing solution for high throughput production of multiplex tests for diagnostics and life science.

Introduction

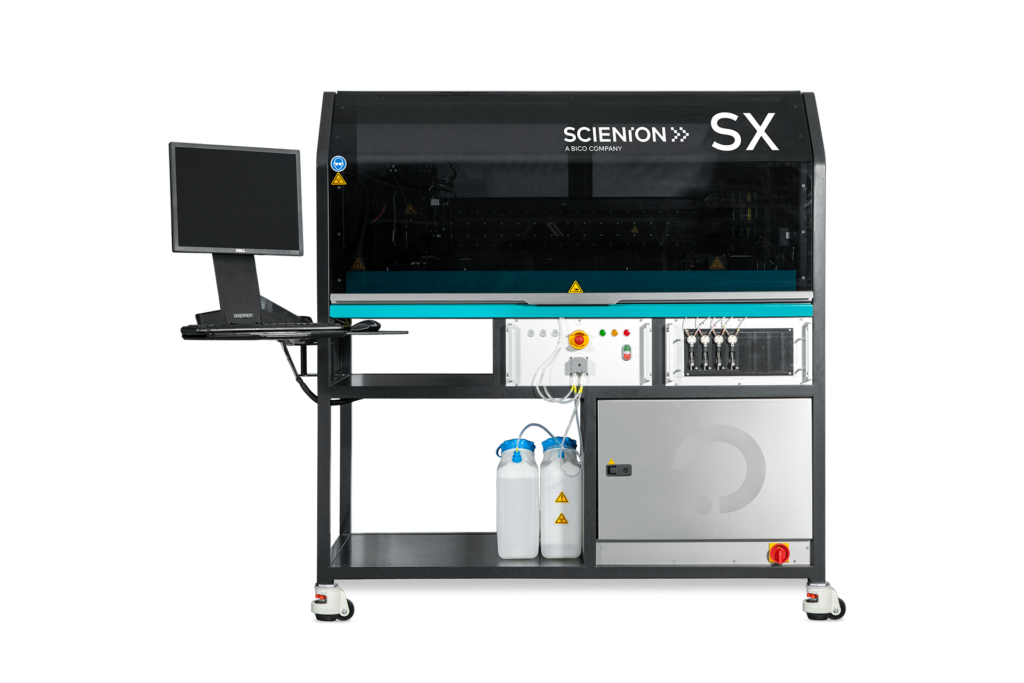

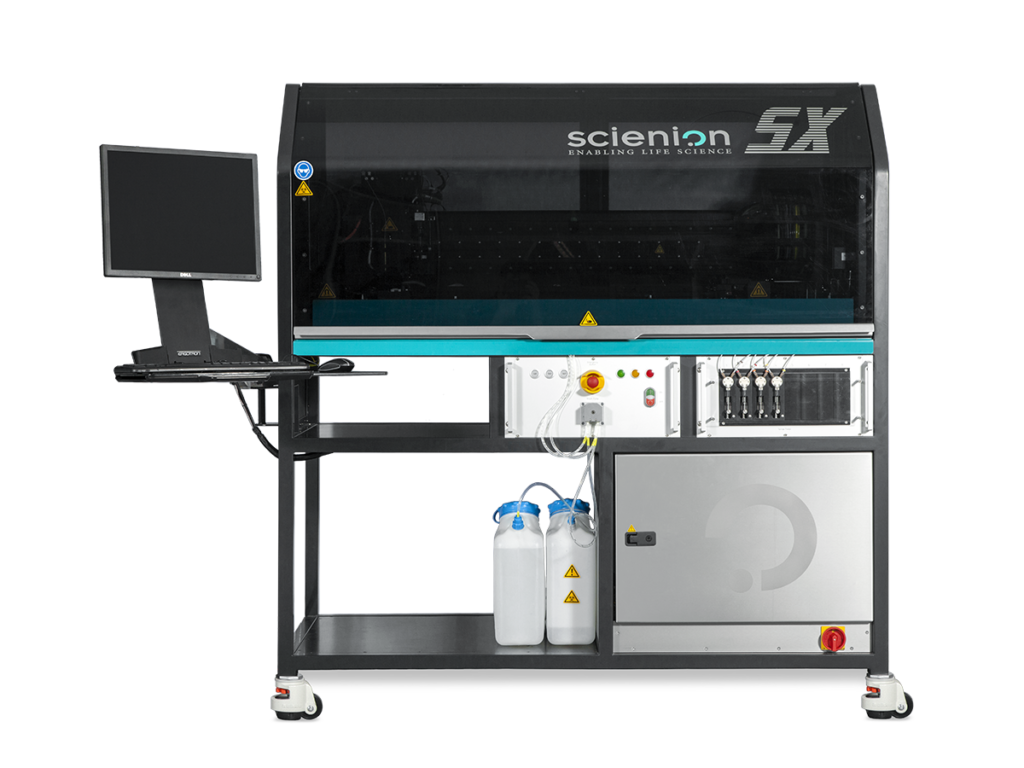

sciFLEXARRAYER SX is a unique automated liquid dispensing solution for high throughput production of multiplex tests for diagnostics and life science.

Thanks to its precise axis system and increased dispensed area, the SX delivers outstanding reproducibility between batches, enabling a printing capacity of 140 slides or 27 MTPs per batch.

sciFLEXARRAYER SX system is compatible with both sciDROP PICO and sciDROP NANO dispensing technologies and is built to high-quality standards: heavy-duty design and low maintenance components as the rest of SCIENION´s portfolio.

Compact automated solution for high throughput manufacturing

The perfect tool for consistent and highly reproducible batch production, with capacity of up to 27 microplates.

book a demo

Compact

All-in-one design

Optimized

For high scale batch production.

Fully automated

User friendly through auto-drop function and walk-away system

Clean-room compatible

Reduce particle contamination and turbulences

Used by multiple companies and research institutes around the world including:

unisensor
immunarraylogo
QuantumDx

Specifications

Dispense Volume 30 – 800 pL/drop
No. of Dispense Capillaries From 1 to 8 PDC channels
Distance Dispense Capillaries 4.5 mm or a custom distance
Target Holder x=800; y=375 mm
Capacity Up to 27 MTPs or 140 standard glass slides
Axis system X-Y linear magnetic & Z spindle drives
Resolution (step size) 1 µm
Precision < 3 µm
Accuracy < 5 µm
Options Spot-on-the-fly, 3D drop camera, vacuum target holder, online target alignment, online array QC software
Dimensions (L,W,H) with enclosure 1670 x 850 x 1760 mm
Weight 450 kg

Hardware & Software Options Available

  • Cooling/heating unit for both source plate and target holder
  • Humidity and dew point control
  • Automated antistatic solution
  • sciPULSE LOW VOLUME for generation of low volume droplets
  • sciUV Package for polymer cross-linking
  • sciPURATOR for online filtering and degassing
  • Cooling and/or shaking for the source plate
  • Custom holders for non-standard targets
  • Easy setup of spotting routines by the user
  • Automated fiducial recognition and alignment
  • Software reporting tools for long printing runs
  • QC software for automated post-spotting analysis
  • Spot-on-the-fly mode to speed up array production
  • Password-protected access levels and permissions
  • De-ionizer
  • Software supported fiducial recognition and target alignment
  • Online array quality control
  • Clean-room compatible
  • Integration of third-party components
