sciFLEXARRAYER Precision Dispensers
Enabling miniaturized multiplex assays for diagnostics and other fields of life sciences
sciFLEXARRAYER is a range of high-precision, non-contact dispensing systems designed for the accurate spotting of liquids from 10 pL to 5,000 nL. Widely used in diagnostics and life sciences, these platforms enable the development and manufacturing of biochips, biosensors, and other analytical tools, delivering exceptional reproducibility with minimal sample waste.
The sciFLEXARRAYER family includes the S3 (entry-level R&D system), S12 (medium-scale batch system), SX (high-throughput batch system), and S100 (customizable, ultra high-throughput system). All models share the same core technology based on Piezo-driven, non-contact microdispensing capillaries (PDCs), enabling accurate and reproducible spotting of a broad range of liquids on various substrates.
Trusted by
Non-contact liquid dispensing
Ultra-high position precision
Ultra-high volume accuracy
All liquids, including high viscosity
Highly customizable and scalable
Minimal dead volume
Benefits
Backed by over two decades of innovation and multiple international patents, sciFLEXARRAYER technology has become the benchmark for non-contact liquid dispensing. Its robust engineering is validated in hundreds of labs worldwide, ensuring reliability you can count on.
Move smoothly from proof-of-concept to full manufacturing without changing platforms. sciFLEXARRAYER systems scale with you, ensuring consistent performance, reproducibility, and compliance at every stage, from early research to high-throughput, regulated environments.
Every sciFLEXARRAYER is manufactured in-house at our German facilities, including the production of our dispensing capillaries. This vertical integration guarantees unmatched quality control, durability, and consistent performance across every instrument we deliver.
Every workflow is different, that’s why sciFLEXARRAYER offers modular design and custom-built solutions. Whether adapting to unique substrates, novel materials, or highly specialized applications, we engineer instruments that fit your needs, not the other way around, to build your own standard.
From high-viscosity solutions to challenging biomaterials, our deep expertise in liquid handling, surface characterization, and coatings allows us to dispense what others cannot. This know-how empowers you to push boundaries in any microdispensing application with confidence.
Wherever you are, our dedicated experts provide comprehensive support, from installation and training to method development and maintenance. With a worldwide service network, you can rely on uninterrupted performance and faster success in your dispensing applications.

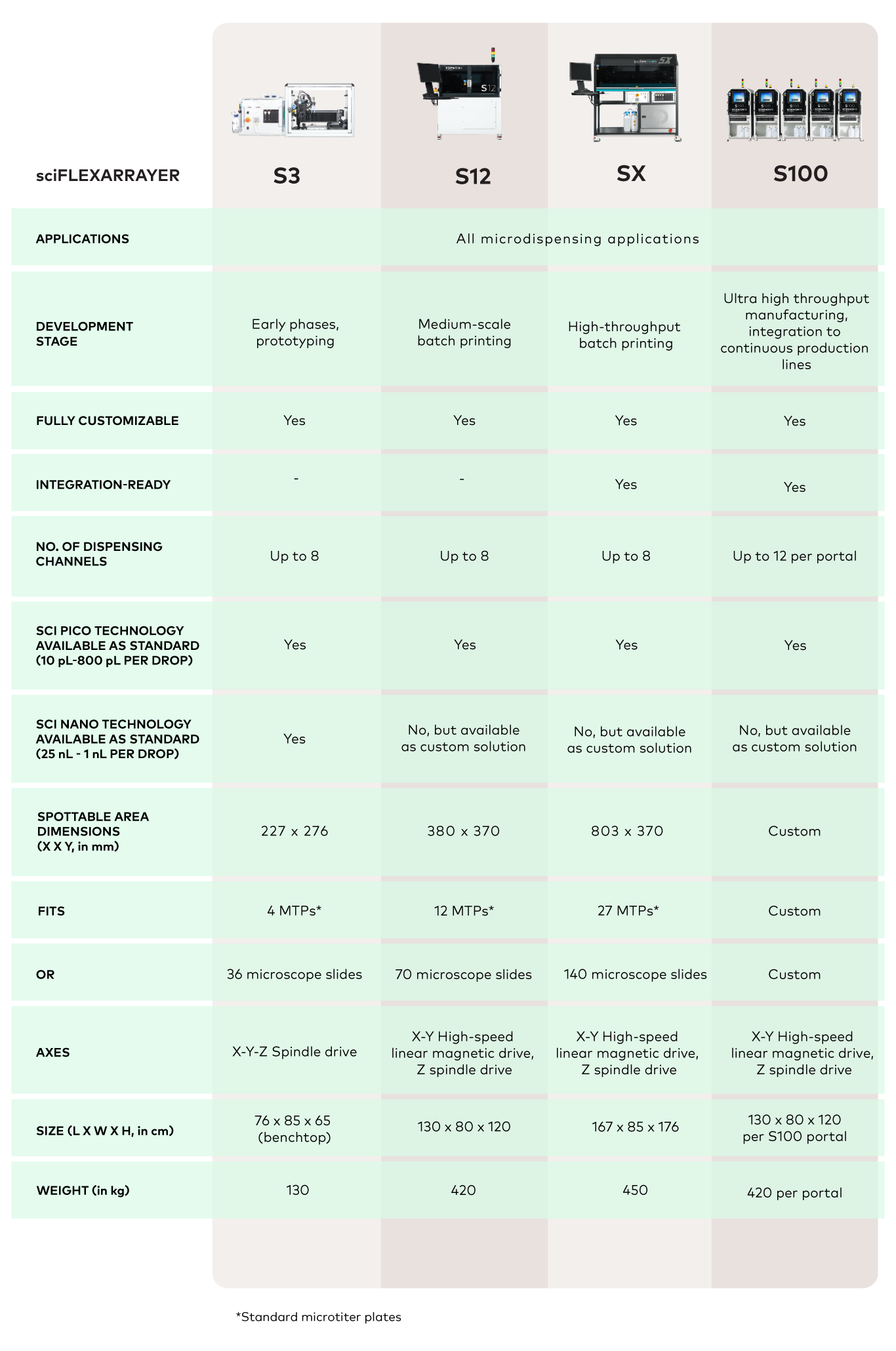

WHICH SCI FLEXARRAYER SHOULD I CHOOSE?
Key Features
Head camera for position control and QC of targets after spotting
High precision and high speed XYZ drives
TARGET DECK, WITH STANDARD OR VACUUM TARGET HOLDERS: UP TO 27 MTP PER BATCH on standard instruments
DROP CAMERA: AUTOMATIC DETECTION AND CONTROL OF THE DROP GENERATION AND DROP VOLUME
UP TO 8 DISPENSING CAPILLARIES WITH INDIVIDUAL CONTROLS, much more in manufacturing solutions
PC CONTROL WITH FLEXIBLE RUN AUTOMATION AND LIVE VISUAL CONTROL OF DROPLET STABILITY
Precision microdispensing applications
Microneedles
Dispensing vaccines, drugs, or diagnostics onto microneedle patches with high precision for minimally invasive delivery platforms.
lateral flow
Automating reagent spotting onto lateral flow assays with consistency and accuracy, from development to large-scale manufacturing
microarray & biosensors
Enabling multiplexed diagnostics with precise spotting of DNA, proteins, or other biomolecules on diverse surfaces.
microfluidics
Filling microchannels, chambers, and lab-on-chip systems with accuracy and repeatability for diagnostics and research workflows.
sciflexarrayer TECHNOLOGY EXPLAINED
NON-CONTACT DISPENSING
Unlike traditional contact spotting methods, non-contact dispensing delivers precise droplets without ever touching the substrate. This eliminates mechanical stress, prevents contamination, and enables accurate deposition into even the smallest cavities.
sciFLEXARRAYERs all offer:
- Vision-controlled precision – Drop volume continuously monitored and adjusted through a proprietary vision-based algorithm.
- Surface protection – No damage to sensitive substrates.
- Homogeneous spot morphology – Consistent spot quality across arrays.
- Miniaturization – Enables dispensing into micro- and nano-scale cavities.
SCIENION offers two different non-contact dispensing technologies: sciDROP PICO and sciDROP NANO which can be used on all sciFLEXARRAYER devices.
sciDROP PICO
Built on piezo-driven pulses applied to inert glass capillaries, sciDROP PICO ensures gentle and reliable liquid handling across a wide range of applications, from assay development to cell dispensing. Multiple capillary types (PDC60, -70, -80, -90, -100) cover different volume ranges, while tailored surface coatings optimize performance for specific liquid properties.
It ensures:
- Unrivaled precision – exact drop volume control with integrated visual detection
- Gentle handling – no shear stress, preserving sample integrity
- No satellite droplets – complete control of ejection parameters
- No additives needed – glycerol-free operation avoids interfering substances
- Low dead volume – maximal use of precious samples
sciDROP PICO is compatible with all sciFLEXARRAYER scales.
sciDROP NANO
Built on electromagnetic micro-valve technology, sciDROP NANO bridges the gap between nanoliter and microliter dispensing. It offers robust performance across a wide range of liquid types, from aqueous buffers to viscous or low-surface-tension solutions, making it ideal for bulk spotting and high-throughput applications. Ceramic tips ensure long-term stability and reproducibility.
It delivers:
- Flexible volumes – from 50 nL to 5 µL per drop
- Broad liquid compatibility – handles challenging viscosities and solvents
- Consistent accuracy – CV typically < 2%
- Versatile modes – spot-on-the-fly, line printing, predefined patterns
| sciDROP PICO | sciDROP NANO | |
|---|---|---|
VOLUME RANGE | 10 – 800 pL / drop | 50 – 5,000 nL / jet |
DROP GENERATION TECHNOLOGY | Pietzoelectrically driven pulses via an inert (low-reaction) glass capillary (Piezo dispense capillary, PDC) | Motor driven pump and electromagnetic micro-valve or other valve systems |
DISPENSING SOURCE | Aspiration / dispense | Aspiration / dispense or BULK |
DISPENSING MODE | Stop-and-spot, spot-on-the-fly, line printing, and predefined patterns | Stop-and spot, spot-on-the-fly, line printing, and predefined patterns |
VOLUME ACCURACY (COEFFICIENT OF VARIATION) | Typically < 0.5 % | Typically < 2 % |
POSITION PRECISION | < 5 µm | < 5 µm |
CONSUMABLES | Piezo Dispense Capillaries; coatable | Ceramic Tips |
