sciPOLY3D

Is your target a non activated polymer surface?

sciPOLY3D enables immobilization of biomolecules on most polymeric substrates, without the need for functional groups on the surface. It also enables covalent immobilization on protein-repellent surfaces, which reduces background and makes blocking obsolete.

Maximum immobilization efficiency and uniform spot morphology while also maintaining the functionality of the capture biomolecule for the downstream assay requirements.

It contains a photo reactive moiety, which upon UV irradiation couples the polymer chains to polymeric substrates, crosslinks the polymer chains leading to a polymer network and covalently attaches the biomolecules to the network.

Directly after the printing process, place the microarrays in a UV crosslinker (e.g. Stratalinker) with a wavelength of 254 nm, choose energy dose control with 1.25 J/cm2.

Due to the hydrophilic nature of the polymer, a surface-attached hydrogel with covalently embedded probe molecules is obtained.

The substrates do not need pretreatment, any native polymer substrate (e.g. PMMA, COP, COC, PP, PS, etc.) can be used.

Get started with our sciPOLY3D kit

To get started the Starter Kits are a very convenient option to try and test spotting of approx. 40 different samples and conditions. They are available for DNA and protein:

sciPOLY3D Protein Starter Kit

sciPOLY3D DNA Starter Kit

How does it work?

Preparation of the stock solution and storage.

Preparation of a stock solution is recommended with 5 mg/ml sciPOLY3D in sciPOLY3D SOL1.

Producing a stock solution with 10 mg/ml is also an option, if needed. But be aware that in this condition a precipitate might form together with concentrated sciPOLY3D SOL2D1 buffer. The final concentration in the printing media generally is 1 mg/ml.

Last step in the synthesis procedure is the lyophilization of sciPOLY3D, therefore it comes as fluffy flakes, which easily dissolve in water. Vortexing for at least 2 times 2 minutes is recommended to yield a clear solution.

The stock solution can be stored for up to 4 weeks, if stored light protected and in a fridge.

sciPOLY3D

Product Name Product Description Contains Product Number
sciPOLY3D SOLID Polymer for 1-step printing Immobilization on non modified substrates. Requires ordering of sciPOLY3D SOL1 10 mg CP-5802-10
100 mg CP-5802-100
sciPOLY3D SOL1 Solution buffer for sciPOLY3D SOLID 5 mL CP-5804-5
50 mL CP-5804-50
sciPOLY3D LIQUID Polymer for 1-step printing Immobilization on non modified substrates 0.5 mL 5x conc. CP-5803-0.5
sciPOLY3D SOL2D1 Spotting buffer for sciPOLY3D with DNA 1 mL 2x conc. CP-5805-1
100 mL 2x conc. CP-5805-100
sciPOLY3D SOL2P1 Spotting buffer for sciPOLY3D with proteins 1 mL 2x conc. CP-5806-1
100 mL 2x conc. CP-5806-100
sciPOLY3D DNA Starter kit for DNA sciPOLY3D LIQUID (0.2 mL 5x conc.), sciPOLY3D SOL2D1 (0.5 mL 2x conc.) and 5x sciCHIP COP CSP-5312-5
sciPOLY3D Protein Starter Kit for proteins sciPOLY3D LIQUID (0.2 mL 5x conc.), sciPOLY3D SOL2P1 (0.5 mL 2x conc.) and 5x sciCHOP COP CP-5807

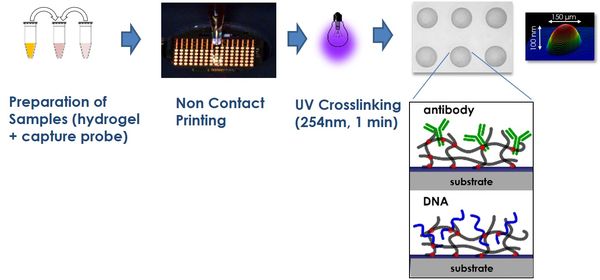

Workflow from Array Printing to Final Diagnostic Result
